Bend

• Size: NPS from 1/2'' to 72'', DN from 15 to 1800,WT: <120mm, SCH 40/80/XXS

• Material: Carbon Steel --- API 5L, ASME B16.49, EN 10218 ；Alloy Steel --- ASTM A234；Stainless Steel --- ASTM 312/403 304/304L/316/316L/613Ti/321/317L/310S

• Bend Radius: 2.5D/3D/4D/5D/6D/7D/8D/9D/10D

• Bend Angle:  15/30/45/60/90/135/180 deg

• Ends: Square Ends/Plain Ends (Straight Cut, Saw Cut, Torch Cut), Beveled/Threaded Ends

• Delivery: BKS, NBK,BK ,BKW, GBK(+A), NBK(+N), BK(+C)

• Usage: For Conveying Gas, Water and Oil Either in the Oil or Natural Gas Industries

For Wrought Product (WP) Dimension is covered in ASME B16.9- which is standard for Factory-made Wrought Butt-welding Fittings for size NPS 1⁄₂ to NPS 48” and B16.28- which is standard for Wrought Steel Butt-Welding Short Radius Elbows and Returns for size NPS 1⁄₂ to NPS 24”

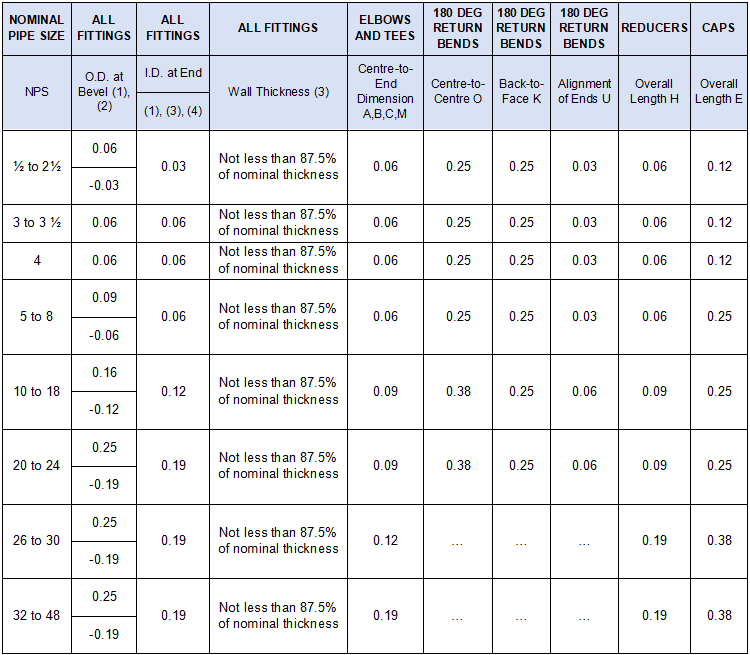

Pipe Fittings Dimensions Tolerance as per ASME B16.9
