Tubing

• Size: OD: 40.26mm ~ 114.3mm；WT: 3.18mm ~ 16mm； LENGTH: R1, R2, R3

• Standard & Grade: API 5CT J55/K55/N80/C75/L80/C90/T95/Q125

• Ends: Beveled, Square Cut, With NUE/EUE Connection

• Packing: Protection Caps in both End, Waterproof Paper Wrapped, Two Tags

• Usage: Used for the Transmission of Oil & Gas

• Thread: NUE, EUE, STC, LTC, BTC, Premium Connection

• Special Service: Sweet Service, Sour Service, Anti-H2S, NACE MR0175/ISO15156

Tubing is pipe used for the transportation of crude oil and natural gas from an oil or gas layer to the surface after drilling is complete. It is made to withstand the pressure generated from the extraction process.

Tubing is manufactured in the same way as casing, except that an additional process known as "upsetting" is applied to thicken the pipes. Tubing is a relatively small-diameter pipe that is run into a well to serve as a conduit for the passage of oil and gas to the field surface facilities for processing. Tubing must be adequately strong to resist loads and deformations associated with production and workovers. Further, tubing must be sized to support the expected rates of production of oil and gas.

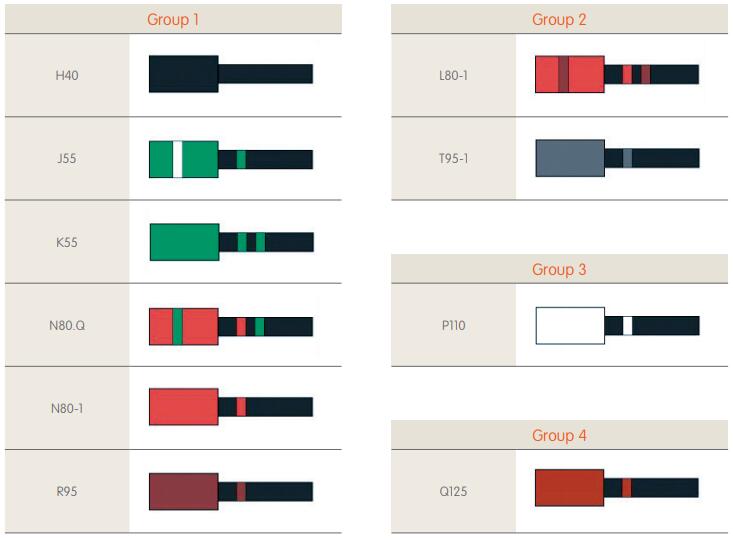

Groups of Grade

• Group 1: All casing and tubing in Grades with H, J, K, N and R

• Group 2: All casing and tubing in Grades with C, L, M and T

• Group 3: All casing and tubing in Grade P

• Group 4: All casing in Grade Q

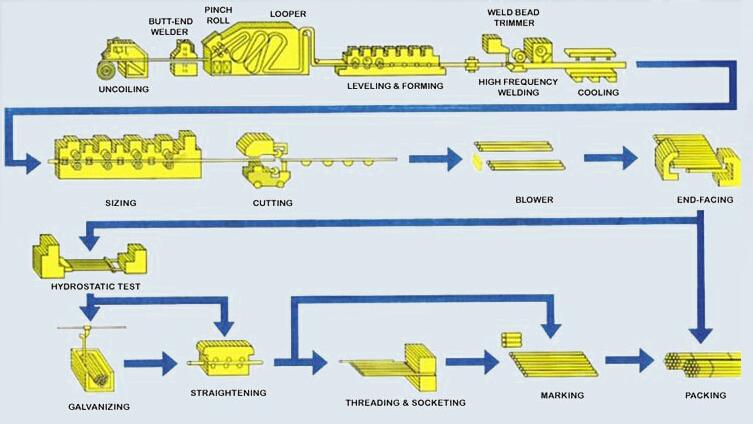

Manufacturing Process

Standard

Lengths
