Valve

• Types: Ball Valve, Gate Valve, Check Valve, Globe Valve, Butterfly Valve

• Grades: SS316, A126 FC20, A182 F316, A213 WCB, A351 CF8M, BRONZE B61, BRONZE B62, BROB62, Ductile Iron, FC200, A126 CL.B, A182 F316L, A276 316, A351 CF3M, A536 Ductile Iron, Nodular Cast Iron, SCPH2, A105

• Materials: Mild Steel, Stainless Steel, Bronze,  Cast Iron, Forged Steel.

Gate Valves

1. Forged Gate Valve

Design and Manufacture: API 602,BS 5352,ASME B16.34/B16.11/B1.20.1/B16.25 /B16.5
Size Range: 1/2＂～4＂
Pressure Ratings: 150LB-2500LB
Temperature Range: -196℃～500℃
End Connections: Threaded,Socket-Welded,Butt-Welded,Flange Type(Welded flange &Integral flange)
Bonnet Design: Bolted bonnet, Welded bonnet, Pressure sealed bonnet
Face to Face Dimension: ASME B16.10 and other standard

Inspection and Testing: API 598 and other standard

2. Casting Gate Valve

Design and Manufacture: DIN3352，API 6D,ASME B16.34,API600，GOST5762-2002

Size Range: DN40-1400，1/2＂～60＂
Pressure Ratings: PN1.0-PN42.0Mpa,150LB-2500LB,
End Connections: EN1092，ASME B16.5, ASME B16.47, MSS-SP44, GOST12815-80
Face to Face Dimension: DIN3202, ASME B16.10, API 6D,GOST3706-93
Inspection and Testing: DIN 3230,API 598，GOST356-80

3. Cast Iron Gate Valve

Design standard conform to: ANSI/AWWA C509
Face to face conform to: ASME B16.10
Pipe connection conform to: ASME B16.1 CLASS125  ANSI/AWWA C111/A21.11  AWWA C606
Pressure testing standard conform to: ANSI/AWWA C509
Actuator: 2 "AWWA operating nut or hand wheel, chain wheel, gearbox, etc.

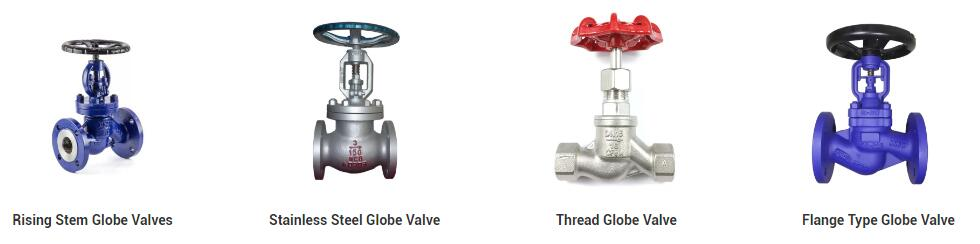

Globe Valve

1. Forged Globe Valve

Body Construction: T-type,Y-type,Angel type.

Bonnet Design: Bolted bonnet, Welded bonnet, Pressure sealed bonnet
Design and Manufacture: API 602,BS 5352,ASME B16.34/B16.11/B1.20.1/B16.25 /B16.5
Size Range: 1/2＂～4＂
Pressure Ratings: 150LB-2500LB
Temperature Range: -196℃～500℃
End Connections: Threaded,Socket-Welded,Butt-Welded,Flange Type(Welded flange &Integral flange)
Face to Face Dimension: ASME B16.10 and other standard

Inspection and Testing: API 598 and other standard

2. Casting Globe Valve

Design and Manufacture: DIN3356，API 6D,ASME B16.34，GOST5762-2002
Size Range: DN40-1400，2＂～24＂
Pressure Ratings: PN1.0-PN42.0Mpa,150LB-2500LB
End Connections: EN1092，ASME B16.5, ASME B16.47, MSS-SP44, GOST12815-80
Face to Face Dimension: DIN3202, ASME B16.10, GOST3706-93
Inspection and Testing: DIN 3230,API 598，GOST356-80

Check Valve

1. Forged Check Valve

Body Construction: Lift check valve, Swing check valve, Ball check valve.
Bonnet Design: Bolted bonnet, Welded bonnet, Pressure sealed bonnet
Design and Manufacture: API 602,BS 5352,ASME B16.34/B16.11/B1.20.1/B16.25 /B16.5
Size Range: 1/2＂～4＂
Pressure Ratings: 150LB-2500LB
Temperature Range: -196℃～500℃
End Connections: Threaded,Socket-Welded,Butt-Welded,Flange Type(Welded flange &Integral flange)
Face to Face Dimension: ASME B16.10 and other standard

Inspection and Testing: API 598 and other standard.

2. Casting Check Valve

Design and Manufacture: DIN3356，API 6D,ASME B16.34,BS1868,GOST5762-2002
Size Range: DN40-1400，2＂～48＂
Pressure Ratings: PN1.0-PN42.0Mpa,150LB-2500LB
End Connections: EN1092，ASME B16.5, ASME B16.47, MSS-SP44, GOST12815-80
Face to Face Dimension: DIN3202, ASME B16.10,API6D, API594，GOST3326-86
Inspection and Testin: DIN 3230,API 598，GOST356-80

Butterfly Valve

1. Resilient Seat Butterfly Valve

Design standard：API 609/EN593
Connection Flange：ISO 7005-2 PN10/16, EN 1092-2 PN10/16,  ASME B16.5 CLASS 150, JIS 10K (DN40~DN300)
Top Flange：ISO 5211
Face To Face：API 609A /EN558 20 series
Test Standard：API 598 /EN12266-1

Working Pressure：PN10/16

2. Double Flange Double Eccentric Butterfly Valve

Design standard Conform To：EN 593
Connection flange conform To：EN1092-2, ISO7005-2
Top flange conform to：ISO 5211
Face to face conform to：EN 558 Series 14
Test standard conform to：EN12266-1
Nominal working pressure：PN10/PN16/PN25/PN40

3. AWWA C504 Butterfly Valve

Design Standards：AWWA C504/AWWA C516
Connection Flange：ASME B16.1 Class 125  AWWA C111/A21.11
Top Flange：MSS SP-101/ISO 5211
Face to Face：AWWA C504/AWWA C516
Test Standard：AWWA C504

4. Tripple Offset Meatal Seated Bufferfly Valve

Size Range：3＂~128＂ (80mm~3200mm)
Pressure Class：150lb~1500lb(PN25~PN260)
Temperature Range：-196℃~+650℃（-321℉~+1202℉）
Connection Type：wafer,lug,double flange,butt -welded
Drive Type：Worm gear, Pneumatic, Electric,Hydraulic

5. High Performance Butterfly Valve

Pressure：Classl50, Class300
Size：Basic type:  2”-48”（50mm -1200mm)
Fire safety type: 2”- 60”（50mm -1500mm)
Temperature：-196°C ~ +650°C (-321 ℉~+1202℉）
Connection Type：wafer, lug
Drive Type：manual, worm gear, pneumatic, electric
Applicable Medium: corrosive chemical media, water, gas, acid, alkali, steam, pharmaceutical, etc.

Ball valve

1. Hard Seal Trunnion Mounted Ball valve

Design and Manufacture: API 6D,API 608,ISO 17292，GB/T12237,GB/T19672
Size Range: 2”～48”
Pressure Ratings: 150LB-2500LB（PN1.6-PN42.0MPa）
Temperature Range: -196℃～650℃
End Connections: ASME B16.5 ,ASME B16.25,JB/T79,GB/T9113，HG/T20529，HG/T20615，EN1092,GB/T12224
Face to Face Dimension: ASME B16.10，GB/T12221,JB 1686, EN 588
Inspection and Testing: API 6D,API 598，JB/T9092，GB/T13927，GB/T26480

2. Soft Seal Trunnion Mounted Ball Valve

Design and Manufacture:API 6D,API 608,ISO 17292，GB/T12237,GB/T19672
Size Range: 2＂～48＂
Pressure Ratings: 150LB-2500LB（PN1.6-PN10.0MPa）
Temperature Range: -196℃～200℃
End Connections: ASME B16.5 ,ASME B16.25,JB/T79,GB/T9113，HG/T20529，HG/T20615，EN1092,GB/T12224
Face to Face Dimension: ASME B16.10，GB/T12221,JB 1686, EN 588
Inspection and Testing: API 6D,API 598，JB/T9092，GB/T13927，GB/T26480

3. Soft Seal Floating Ball Valve

Design and Manufacture: API 6D,API 608,ISO 17292，GB/T12237,GB/T1967
Size Range: 1/2＂～10＂
Pressure Ratings: 150LB-2500LB（PN1.6-PN42.0MPa）
Temperature Range: -196℃～200℃
End Connections: ASME B16.5 ,ASME B16.25,JB/T79,GB/T9113，HG/T20529，HG/T20615，EN1092,GB/T12224
Face to Face Dimension:ASME B16.10，GB/T12221,JB 1686, EN 588
Inspection and Testing:API 6D,API 598，JB/T9092，GB/T13927，GB/T26480

4. FS Soft Seal Floating Ball Valve

Design and Manufacture: API 6D,API 608,ISO 17292，GB/T12237,GB/T19672
Size Range: 1/2＂～4＂
Pressure Ratings: 150LB-900LB（PN1.6-PN15.0MPa）
Temperature Range: -196℃～200℃
End Connections: ASME B16.11, ASME B16.25, GB/T12224
Face to Face Dimension: Manufacturer standard
Inspection and Testing: API 6D,API 598，JB/T9092，GB/T13927，GB/T26480

5. Hard Seal-Floating Ball Valve

Design and Manufacture: API 6D,API 608,ISO 17292，GB/T12237,GB/T19672
Size Range: 1/2＂～10＂
Pressure Ratings: 150LB-2500LB（PN1.6-PN42.0MPa）
Temperature Range: -196℃～650℃
End Connections: ASME B16.5 ,ASME B16.25,JB/T79,GB/T9113，HG/T20529，HG/T20615，EN1092,GB/T12224
Face to Face Dimension: ASME B16.10，GB/T12221,JB 1686, EN 588
Inspection and Testing: API 6D,API 598，JB/T9092，GB/T13927，GB/T26480

6. Full Welded Ball Valve

Design and Manufacture: API 6D,API 608,ISO 17292，GB/T12237,GB/T19672
Size Range: 2＂～40＂
Pressure Ratings: 150LB-2500LB（PN1.6-PN42.0MPa）
Temperature Range: -196℃～200℃
End Connections: ASME B16.5 ,ASME B16.25,JB/T79,GB/T9113，HG/T20529，HG/T20615，EN1092,GB/T12224
Face to Face Dimension: ASME B16.10，GB/T12221,JB 1686, EN 588
Inspection and Testing: API 6D,API 598，JB/T9092，GB/T13927，GB/T26480

7. Top Entry Ball Valve

Design and Manufacture: API 6D,API 608,ISO 17292，GB/T12237,GB/T19672
Size Range: 2＂～10＂
Pressure Ratings: 150LB-900LB（PN1.6-PN15.0MPa）
Temperature Range: -196℃～200℃
End Connections: ASME B16.5 ,ASME B16.25,JB/T79,GB/T9113，HG/T20529，HG/T20615，EN1092,GB/T12224
Face to Face Dimension: ASME B16.10，GB/T12221,JB 1686, EN 588
Inspection and Testing: API 6D,API 598，JB/T9092，GB/T13927，GB/T26480

8. Three Way&Four Way Ball Valve

Design and Manufacture: API 6D,API 608,ISO 17292，GB/T12237,GB/T19672
Size Range: 1/2＂～8＂
Pressure Ratings: 150LB（PN1.6-PN4.0MPa）
Temperature Range: -29℃～350℃
End Connections: ASME B16.5 , JB/T79,GB/T9113，HG/T20529，HG/T20615，EN1092
Face to Face Dimension: Manufacturer standard
Inspection and Testing: API 6D,API 598，JB/T9092，GB/T13927，GB/T26480

9. Flange High Temperature Ball Valve

Design and Manufacture:API 6D,API 608,ISO 17292，GB/T12237,GB/T19672
Size Range: 1/2＂～8＂
Pressure Ratings: 150LB（PN1.6-PN2.5MPa）
Temperature Range: -196℃～300℃
End Connections: ASME B16.5 ,ASME B16.25,JB/T79,GB/T9113，HG/T20529，HG/T20615，EN1092,GB/T12224
Face to Face Dimension: ASME B16.10，GB/T12221,JB 1686, EN 588
Inspection and Testing: API 6D,API 598，JB/T9092，GB/T13927，GB/T26480

10. Thin Ball Valve

Design and Manufacture: API 6D,API 608,ISO 17292
Size Range: 1/2”～8”
Pressure Ratings: 150LB（PN1.6-PN2.5MPa）
Temperature Range: -196℃～350℃
End Connections: ASME B16.5 , EN1092
Face to Face Dimension: ASME B16.10, EN 588
Inspection and Testing: API 6D,API 598

11. Heating Ball Valve

Design and Manufacture: API 6D,API 608,ISO 17292，GB/T12237,GB/T19672
Size Range: 1/2＂～10＂
Pressure Ratings: 150LB-600LB（PN1.6-PN10.0MPa）
Temperature Range: -196℃～200℃
End Connections: ASME B16.5 ,ASME B16.25,JB/T79,GB/T9113，HG/T20529，HG/T20615，EN1092,GB/T12224
Face to Face Dimension: ASME B16.10，GB/T12221,JB 1686, EN 588
Inspection and Testing: API 6D,API 598，JB/T9092，GB/T13927，GB/T26480

Class 150
Dimensions and Weights  (*Gear Operated )

Class 300
Dimensions and Weights  (*Gear Operated )

Class 600
Dimensions and Weights  (*Gear Operated )

Class 900
Dimensions and Weights  (*Gear Operated )

Class 1500
Dimensions and Weights  (*Gear Operated )

Class 2500
Dimensions and Weights  (*Gear Operated )
